Bogie Guards Van
Bogie Guards Van

Instructions

1. Base

2. Side Panels

3. Main Body

4. Bogies

5. Finishing Touches


Info & Parts

Build Instructions - Finishing Touches

Step 5.1

16 mm Kit Instructions

16 mm Kit Instructions
16 mm Kit Instructions
16 mm Kit Instructions

Click/tap the thumbnails to select an image.
Click/tap the main image for a full size view.

Tools

Glue

Parts

4x Angle Door Details
4x Square Door Details

Stages

Glue the sliding door details in place.

Repeat for both sides.

Step 5.2

16 mm Kit Instructions

16 mm Kit Instructions
16 mm Kit Instructions
Tools

Glue

Parts

2x Sliding Door Stops

Stages

Glue the sliding door stop in place.

Repeat for both sides.

Step 5.3

16 mm Kit Instructions

16 mm Kit Instructions
16 mm Kit Instructions
16 mm Kit Instructions
Tools

Glue

Parts

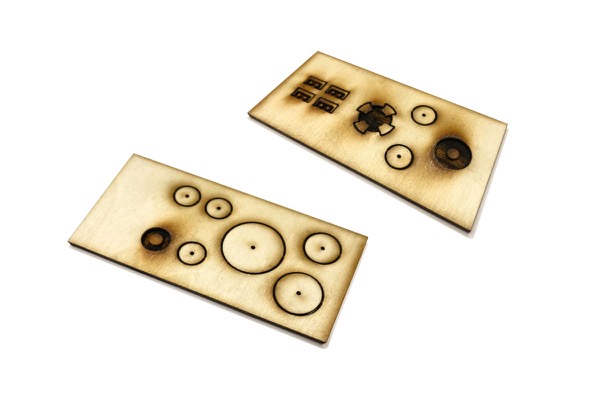

2x Roof Details

Stages

Build the roof details from the individual parts.

Glue the roof details in place.

Notes

The parts for the roof details can be mixed and matched as preferred. The lower pieces have centre holes to help with aligning.

Step 5.4

16 mm Kit Instructions

16 mm Kit Instructions
16 mm Kit Instructions
16 mm Kit Instructions
Tools

Glue

Parts

2x Door Knobs
2x Door Steps

Stages

Glue one of the door knobs into place.

Check the fit of a door step and file/sand the edges if needed. Then glue into place.

Repeat for the other side.

Step 5.5

16 mm Kit Instructions

16 mm Kit Instructions
16 mm Kit Instructions
Tools

Glue

Parts

Vent Cover

Stages

Glue the vent cover in place.

That's it!
