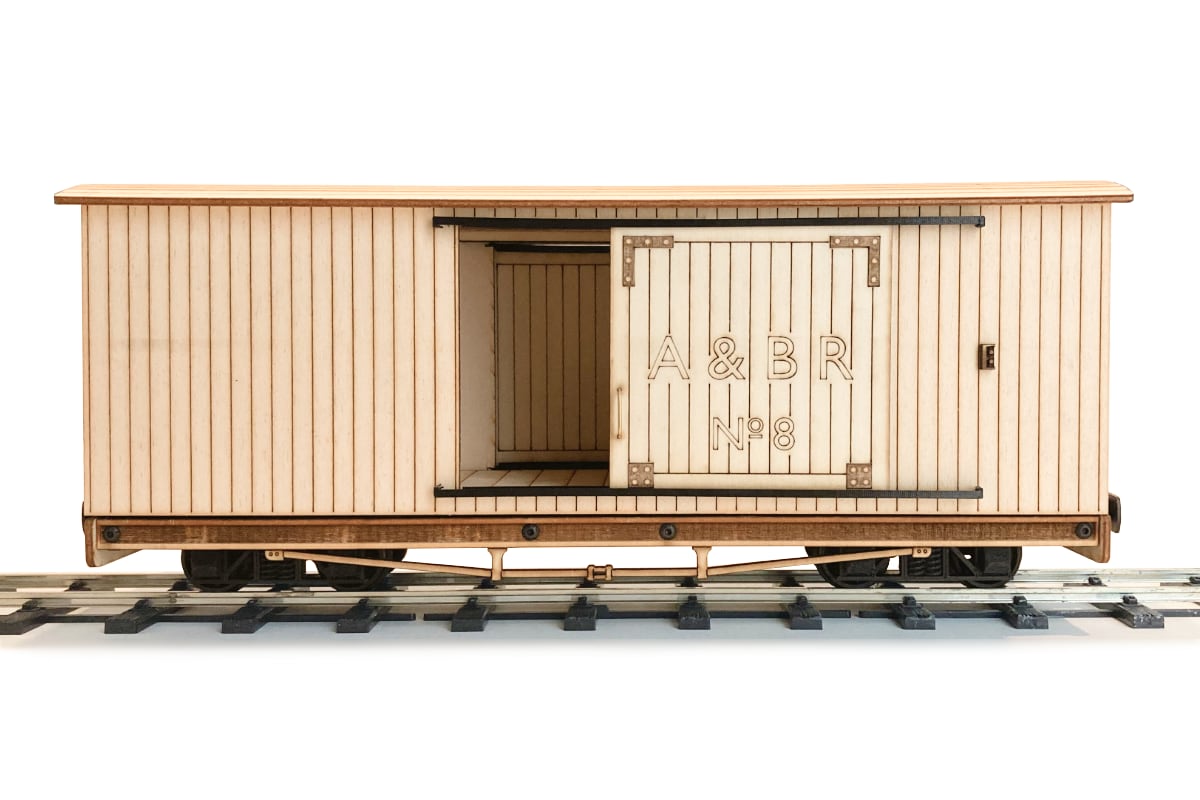

Bogie Box Van

The bogie box van is primarily made from laser cut plywood with a mix of plywood, 3D printed and brass details. Couplings provided are peterbinnie centre buffers.

The bogies consist of 3D printed parts and use glass re-enforced plastic wheels with stainless steel axles and nylon bearings.

Dimensions:
Overall width 104 mm
Body width 94 mm
Height above rails 140 mm
Overall length (inc buffers) 362 mm
Roof length 340 mm

Assembly requires:
Glue (PVA, superglue or similar)
2 mm allen key
2.5 mm allen key
Clamps, elastic bands or tape would also be useful.

See below for the parts list or click here for build instructions.

Parts List

For larger views click/tap on the images.

Frame / Base

2x Frame Centre Spacers
2x Frame End Spacers
2x Frame Beams
1x Base
8x M3 x 12 mm Screws
8x M3 Nuts
2x Buffer Beams
2x Buffers

Main Body

1x Left Side + 1x Right Side
2x End Panels (with vents)
1x Roof
2x Sliding Doors
2x Sliding Door Braces
4x Roof Braces
4x Door Runners (2x left + 2x right handed)

Detail Parts

4x Square + 4x Angle Door Details
2x Tensioners
2x Door Handles
2x Door Stops
2x Vent Covers

Bogie Parts

4x Bogie Sides (2 per bogie)
2x Bogie Beams (1 per bogie)
2x Pivot Beams (1 per bogie)
8x Bearings (4 per bogie)
4x Axles (2 per bogie)
8x Wheels (4 per bogie)
4x M3 x 6 mm Screws (2 per bogie)
8x M3 x 12 mm Screws (4 per bogie)
2x M4 x 14 mm Screws (1 per bogie)
2x M4 Locking Nuts (1 per bogie)
2x Small Washers (1 per bogie)
4x Large Washers (2 per bogie)
