Build Instructions - Side Panels
Step 2.1
Click/tap the thumbnails to select an image.
Click/tap the main image for a full size view.
Tools
Glue
Parts
2x Sliding Doors
2x Door Handles
Stages
Glue 1x window into each of the side panels.
Alternatively, the windows can be fixed in place from the back with clear tape.
Stages

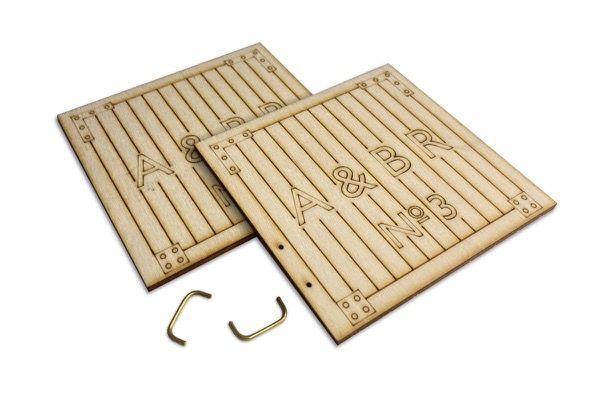

Fit the door handles into the sliding doors.
Secure with glue if needed.
Step 2.2
Tools
Glue
Parts
1x Left Side Panel
1x Right Side Panel
2x Sliding Door Braces
Stages

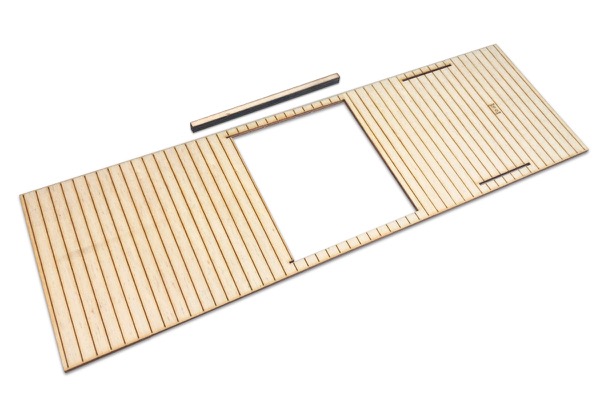

Glue the brace to the inside of one side panel, above the door opening (the top is thinner than the bottom).
Repeat for the second side panel.
Caution
Make sure to glue the thin edge of the brace to the thinnest section of the side.
Also ensure the brace does not protrude above the side top or below the door opening.
Step 2.3
Tools
Glue
Parts
2x Sliding Doors (from Step 2.1)
2x Side Panels (from Step 2.2)
4x Door Runners
Stages

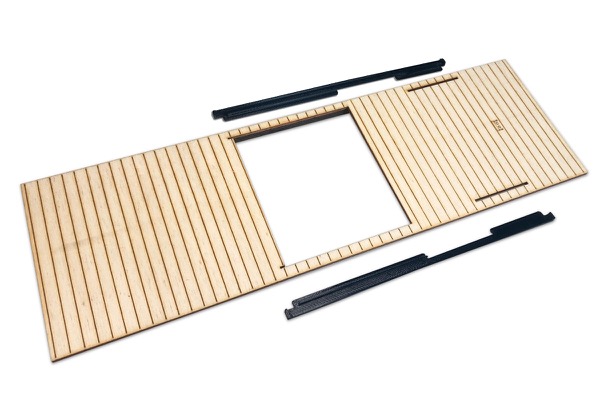

Glue the bottom door runner into place. The runners may need a little filing to fit fully.
Add one of the doors and then glue the top runner into place.
Repeat for the second side panel.
Caution
Be sure to add the door before fitting the second runner.
Also make sure the door is the right way up!
